Axicube-I TSProf

Code: TS-PT2200370
Not rated
Brand: TSPROF
€129 / pcs
In Stock (2 pcs)

TSProf Axicube-I

Detailed information

Product detailed description

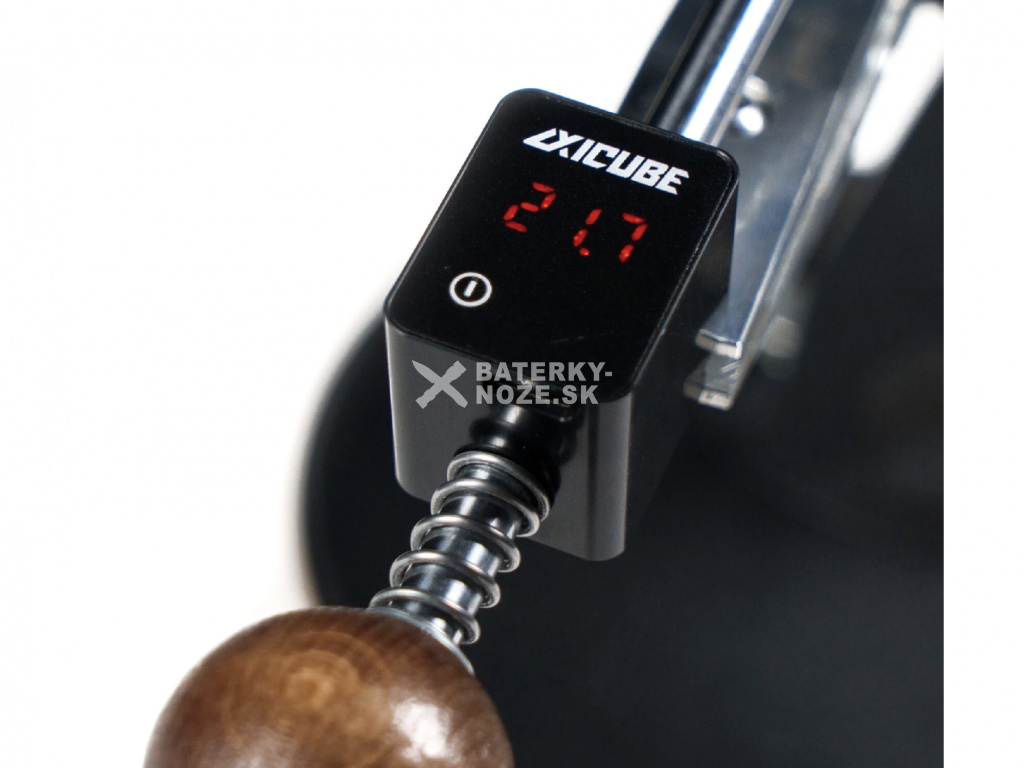

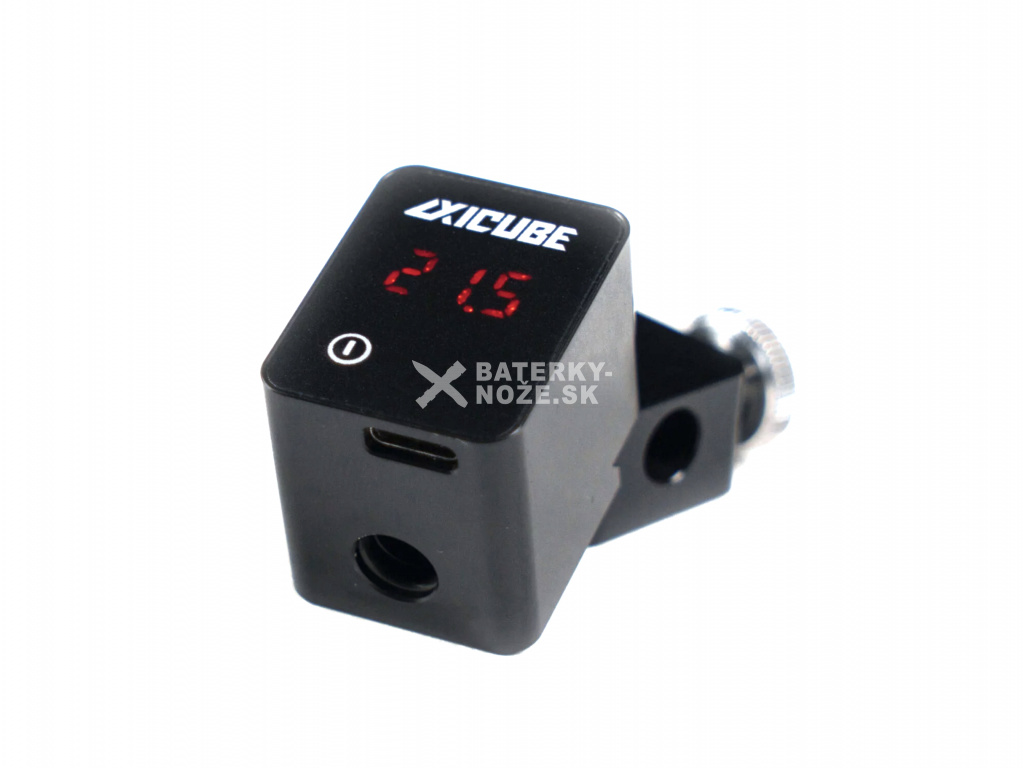

Electronic protractor Axicube-i
The electronic protractor Axicube-i is a product of Tekhnostudio Profile’s own development. It allows you to measure the set sharpening angle with an accuracy of 0.1° and helps to control and track any changes in the angle in real time, for example when changing the abrasive. The bright display is easy to read in any lighting conditions. The goniometer is housed in a durable aircraft-grade aluminum housing and is vibration-resistant.

Axicube-i runs on a built-in battery, rechargeable via a USB type C connector. One charge is enough for a full eight-hour sharpening day.

The goniometer is built into the abrasive holder of the Profile K03 Lite sharpening device with a steel rod. The delivery set also includes a fixed stop, which allows you to fix abrasives as rigidly as possible, both with a blank and without a blank.

Attention! Correct operation of the electronic angle meter is only possible with the steel rod of the Profile K03 Pro and Profile K03 Lite sharpeners, as well as when using the fixed stop included in the kit. The use of Axicube-i with other stops and rods may lead to a decrease in the accuracy of the indicators and a violation of warranty obligations on the part of users.

Technical characteristics of the goniometer:

  • Angle measurement: 0° - 99.9°
  • Measuring accuracy: ±0.10°
  • Resolution: 0.10°
  • Power supply: Li-Pol, 3.7V, 180mAh
  • USB connector: USB C
  • Charge indicator: Yes
  • Calibration: Yes
  • Auto power off: 2 minutes

Equipment:

  • Electronic protractor – 1 pc.
  • Fixed stop - 1 pc.
  • Calibration prism – 1 pc.
  • USB cable – 1 pc.

Attention!
The product is not intended for measurements other than sharpening; correct operation of Axicube-i is only possible with Profile K03 Lite. The product is not compatible with TSPROF Kadet and TSPROF Blitz sharpening devices. The product is not designed to work with the clamp "TSPROF Universal table, small".

Correct operation of the product with other sharpening devices is not guaranteed.
